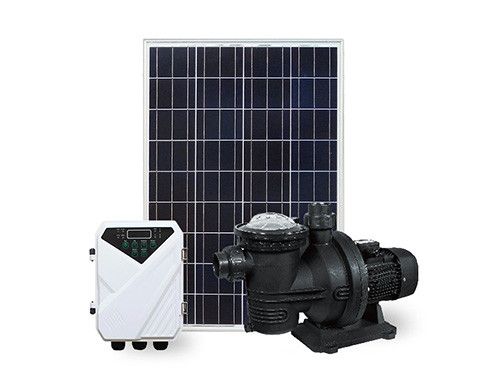

Pool Solar Pump
Our solar pumps have been manufactured for over 10 years and have benefited from constant advances in solar equipment.
They are equipped with large connections reducing the I/O load losses of the pumps.
In comparison with the budget of conventional pumps (pump & its box), they are amortized in less than a year in terms of electricity consumption.

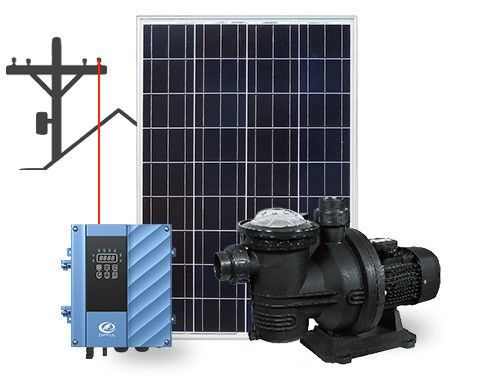

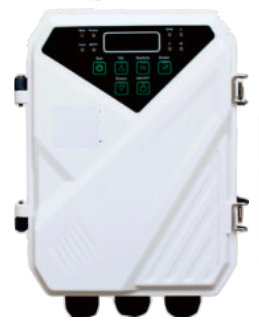

The last two models of pumps on the list (AC.220/DC.330) are bi-current (AC & DC) with automatic switch depending on the intensity of the sun.
You connect both the solar current and the electric current to it.
When there is no sunshine, the power supply switches directly to city AC power. And vice versa.
Choice of Solar Pool Pumps

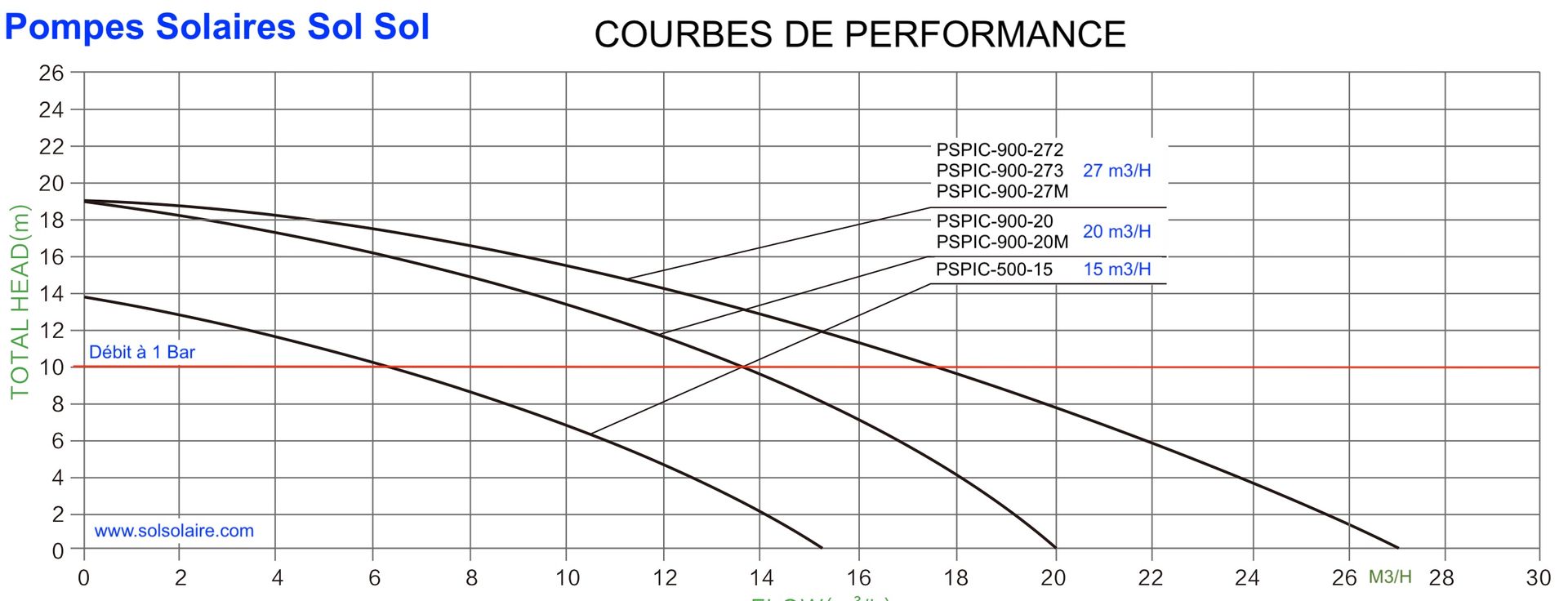

| ROLE MODELS | POWER W. | VOLTAGE V. | DEBIT MAX (M3/H) | HTM M. | Sortie (inch) | 450W panel | Sale CFA | Economies (*) |
|---|---|---|---|---|---|---|---|---|

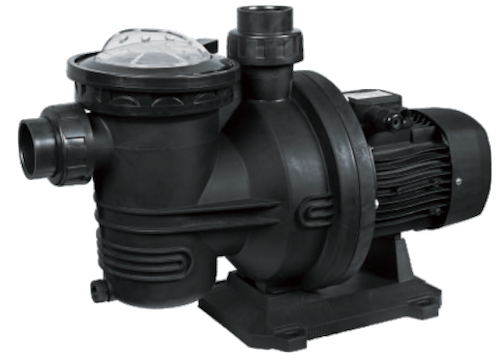

| PSPIC-500-15 | 500 | DC 48 | 15 | 14 | 2" | 2 | 600.000 | 230.000 / An |

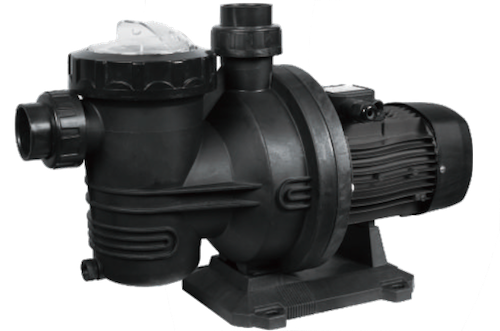

| PSPIC-900-20 | 900 | DC 72 | 20 | 19 | 2" | 3 | 650.000 | 415.000 / An |

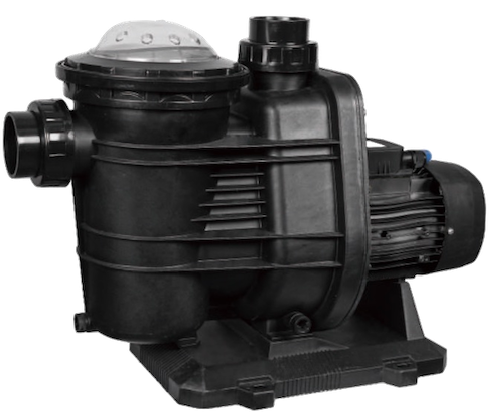

| PSPIC-1200-272 | 1.200 | DC 72 | 27 | 19 | 2" | 3 | 850.000 | 550.000 / An |
| PSPIC-1200-273 | 1.200 | DC 110 | 27 | 19 | 3" | 4 | 1.100.000 | 550.000 / An |
| PSPIC-900-20M | 900 | AC.220/DC.330 | 20 | 19 | 2" | 3 | 1.050.000 | 415.000 / An |
| PSPIC-1200-27M | 1.200 | AC.220/DC.330 | 27 | 19 | 3" | 4 | 1.300.000 | 550.000 / An |
| (Excluding poses) |
Savings (*): Based on 7 hours of daily operation at 180 CFA including tax per Kw/h
Advantages of solar pool pump
- DC permanent magnet brushless synchronous motor: Efficiency increased from 15% to 20%; Saves energy and reduces the power of solar panels needed. 304 stainless steel rotor shaft prevents it from breaking. Japanese brand NSK bearing: Long life and high reliability. Alloy mechanical seal: longer life and high reliability.The enamel wire adopts 180°C high temperature resistant copper wire, insulation class F.Stator and rotor made of cold-rolled 600 silicon steel.The magnet is made of aluminum iron material /boron 40SH and its temperature resistance can reach 150℃.Intelligent water shortage protection: When there is no water in the pump, the motor will stop and resume 30mins later. New paragraph

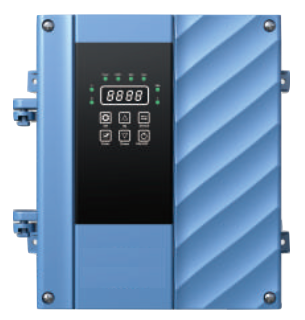

Advantages of solar pump controller
- Waterproof level: IP65Wide open-circuit voltage rangeOperating temperature: -15 to 60℃Maximum input current: 17AMPPT function, the utilization rate of solar energy is higherLED displays the power, the voltage, current, speed and multiple working conditions. Automatically adjust the speed according to the solar power or manually change the speed according to the actual demand. Automatically start and stop the pump, automatic operation of the solar pump. gradual: no pulse current, protect the pump motor.Protection functions such as: over voltage / under voltage / over current / phase loss / short circuit / lack of water / high temperature protection.
Choice of solar panels (PS) depending on the pump model
| ROLE MODELS | POWER W. | VOLTAGE V. | PS. ideal voltage | PS: Power | PS: YOU | PS : 330W | PS : 450W |
|---|---|---|---|---|---|---|---|
| PSPIC-500-15 | 500 | DC 48 | 60 V - 90 V | Mini 650W | < 105 V | 2 | 2 |
| PSPIC-900-20 | 900 | DC 72 | 90V - 120V | Mini 1.200 W | < 160 V | 4 | 3 |
| PSPIC-1200-272 | 1.200 | DC 72 | 90V - 120V | Mini 1.600 W | < 160 V | 5 | 3 |
| PSPIC-1200-273 | 1.200 | DC 110 | 100 V - 150 V | Mini 1.600 W | < 210 V | 5 | 4 |
| PSPIC-900-20M | 900 | AC.220/DC.330 | 80 V - 430 V | Mini 1.200 W | < 480 V | 4 | 3 |
| PSPIC-1200-27M | 1.200 | AC.220/DC.330 | 80 V - 430 V | Mini 1.600 W | < 480 V | 5 | 4 |
